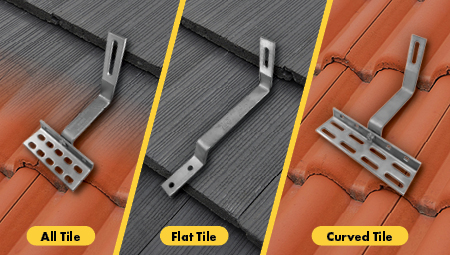

Tile Roofing Hooks
Tile Roofing Hooks
This page is your quick guide to all things tile roofing from hooks to flashing
Tile Hook Categories:
Tile Hook Resources:
Download the Roofing Hook Guide Today
Here at QuickBOLT we're all about saving you time and now we have a Roofing Hook Guide to make your decision making for jobs quick and easy!
All Tile Hooks
Height Adjustable All Tile Roof Hook for Side Mount Rails
Part#: 17589
Description: 90° All Tile Roof Hook, 8mm Height Adjust Range Kit with 1/4" X 3" Screws - for Curved & Flat Tile Roofs - works with or without battens. Type 304 Stainless Steel
Height Adjustable All Tile Roof Hook for Side Mount Rails
Part#: 17598
Description: All-Tile ADJB 2XB 90 1/4" X 3" Kit 10H-20S/KTC. Type 304 Stainless Steel
Height Adjustable All Tile Roof Hook for Side Mount Rails
Part#: 17702
Description: 90° All Tile Roof Hook 5-3/4" Arm, 8mm Height Adjust Range Kit with 1/4" X 3" Screws - for Curved & Flat Tile Roofs - works with or without battens. Type 304 Stainless Steel
Curved Tile Hooks
Non-Adjustable Hook for Side Mount Rails
Part#: 17510
Description: 90° Non-Adjustable Curved Tile Roof Hook Kit with 1/4" X 3" Screws. Type 304 Stainless Steel
23mm Adjustable Height for Side Mount Rails
Part#: 17522
Description: 90° Curved Tile Roof Hook, 23mm Height Adjust Range Kit with 1/4" X 3" Solar Screws. Type 304 Stainless Steel
5mm Adjustable Height for Side Mount Rails
Part#: 17572
Description: 90° Curved Tile Roof Hook, 5mm Height Adjust Range Kit with 5/16" X 3" Screws. Type 304 Stainless Steel
5mm Adjustable Height with Wide Base for Side Mount Rails
Part#: 17576
Description: 90° Curved Tile Roof Hook Wide Base, 5mm Height Adjust Range Kit with 5/16" X 3" Screws. Type 304 Stainless Steel
Non-Adjustable Hook for Side Mount Rails
Part#: 17708
Description: 90° Non-Adjustable Curved Tile Roof Hook W/225mm Base Kit with 1/4" X 3" Screws. Type 304 Stainless Steel
Flat Tile Hooks
Flat Tile Roof Hook for Side Mount Rails
Part#: 17542
Description: 90° Flat Tile Roof Hook, 38mm Height Kit with 1/4" X 3" Screws. Type 304 Stainless Steel
Tile Hook Install Videos
All Tile Hook Install
Curved Tile Hook Install
Flat Tile Hook Install
A-F2 Measurements:
QuickBOLT Tile Hook Guide
The Tile Hook Guide helps you quickly find the right solar hook for any tile roof type with clear comparisons of 9 top options—no guesswork, no delays.
Stone-Coated Steel
Stone-Coated Steel (SCS) roofs are a durable, eco-friendly option often overlooked by solar installers. QuickBolt aims to change that by offering specialized mounts and training, making solar installation on SCS roofs easier and more accessible for homeowners and installers alike.
QB Tariffs
Announcement June 2025
Planning Ahead: QuickBOLT’s Response to the Most Recent Tariffs
This update builds on our previous communications sent on March 6 and April 4, 2025, and outlines new developments in U.S. trade policy affecting steel and aluminum—core materials used in QuickBOLT products.
New Tariff Announcement – June 4, 2025
On June 4, the U.S. government announced an additional 25% tariff on imported steel and aluminum under Section 232 of the Trade Expansion Act. This brings the total tariff rate to 50%, effectively doubling the previous tariff increase.
This development affects all base materials used in manufacturing QuickBOLT’s industry-leading solar mounts.
QuickBOLT’s Response to the Additional Tariff Increase
QuickBOLT believes your business can be protected—and better prepared—through clear, early communication. This update reflects a proactive approach: anticipating changes, responding with intention, and finding creative ways to support long-term partnerships.
Over the last three weeks, the following actions have been taken:
• Re-evaluated material sourcing and vendor relationships to choose the most cost-stable and reliable options.
• Reorganized internal operational budgets to absorb the majority of the cost impact before it reaches customers.
• Expanded the Tariff Resource Page to include this update and maintain a complete archive of all prior tariff communications.
Price Adjustment Notification – Effective Monday, July 14, 2025
To address this material cost increase, QuickBOLT pricing will increase by 9.5% starting Monday, July 14, 2025.
This change ensures continued access to high-quality, leak-proof mounting solutions—backed by a family-owned business that believes the best way to serve you is through reliable information delivered clearly and ahead of schedule.
Built for Long-Term Confidence
For over 37 years, Quickscrews International Corporation and QuickBOLT have helped customers navigate change and complexity in materials, policy, and supply chains.
QuickBOLT backs its products with unparalleled customer service—built on the belief that communication, even during times like this, equips installers and renewable energy professionals to plan and perform with confidence.
Sincerely,
Greg Wiener
CEO & Founder
Quickscrews International Corporation & QuickBOLT
Announcement April 2025
Planning Ahead: QuickBOLT’s Response to the Most Recent Tariffs
The U.S. government has announced a new round of tariffs, impacting imported steel and aluminum products.
A 25% tariff will be applied to these materials from any country outside the USA.
For official details, you can review the announcements here:
Aluminum Tariff Increase: [Executive Order]
Steel Tariff Increase: [Executive Order]
At QuickBOLT, we support installers, distributors, and all solar professionals working to further a world powered by renewable energy. We know reliability is essential to this mission. That’s why we’re committed to clear and direct communication, especially when things change.
While these changes present challenges, we’re in this together. Our commitment to quality, fast shipping, and exceptional service remains unchanged. We will fully comply with all laws and ensure the appropriate tariffs are applied to affected products.
To help you better navigate and understand these metal tariffs, MetalMiner has produced an in-depth guide. You can access the PDF directly here.
Thank you for your continued support. No matter what the future holds, we’ll keep providing installers, DIYers, and distributors with fast and leakproof mounts—backed by over 37 years of fastener expertise.
If you have any questions please contact using the information below or chat with your local sales consultant.
Metal
Built for Metal. Built for Speed.
RibRider
For Exposed Fastener and Trapezoidal Roofs
Throne
For 15MM Standing Steam Roofs
QuickBOLT makes the fastest, most secure metal roof mounts on the market. We know the most expensive part of any solar install is the time spent on the roof—so we built mounts that save time without cutting corners. Whether you're on trapezoidal or standing seam roofs, our products install fast, hold tight, and don’t leak.

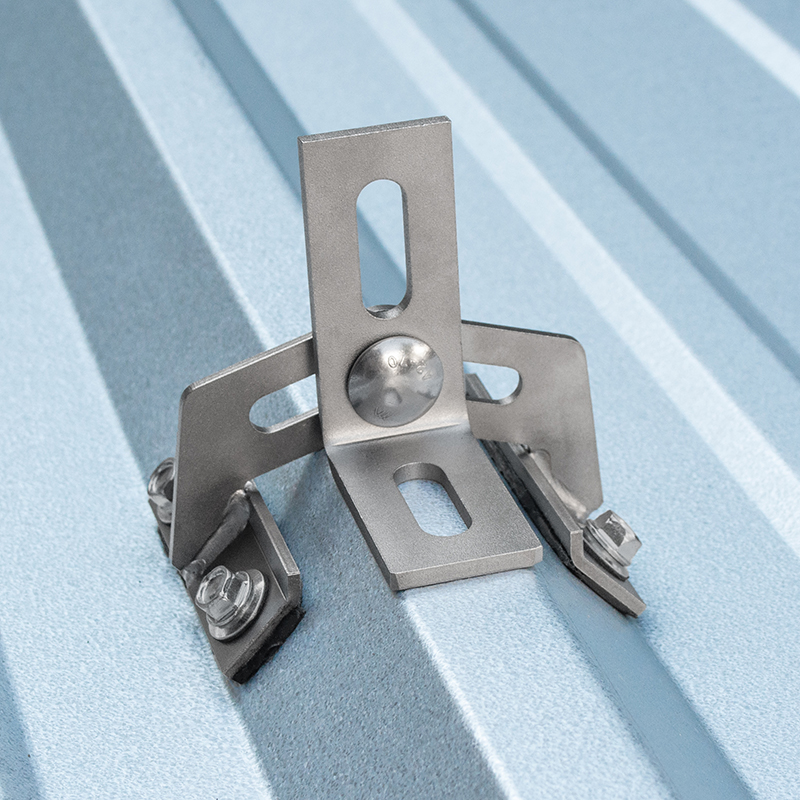

QB RibRider ®
Exposed Fastener and Trapezoidal Roofs
The QB RibRider is the fastest, leak-proof mount for trapezoidal metal roofs—fully assembled with an adjustable base, rotating L-Foot, and four stainless steel screws. It fits a range of rib widths and angles, installs in seconds, and uses butyl-sealed plates for unmatched hold and leak protection. One bracket, one SKU, total confidence.

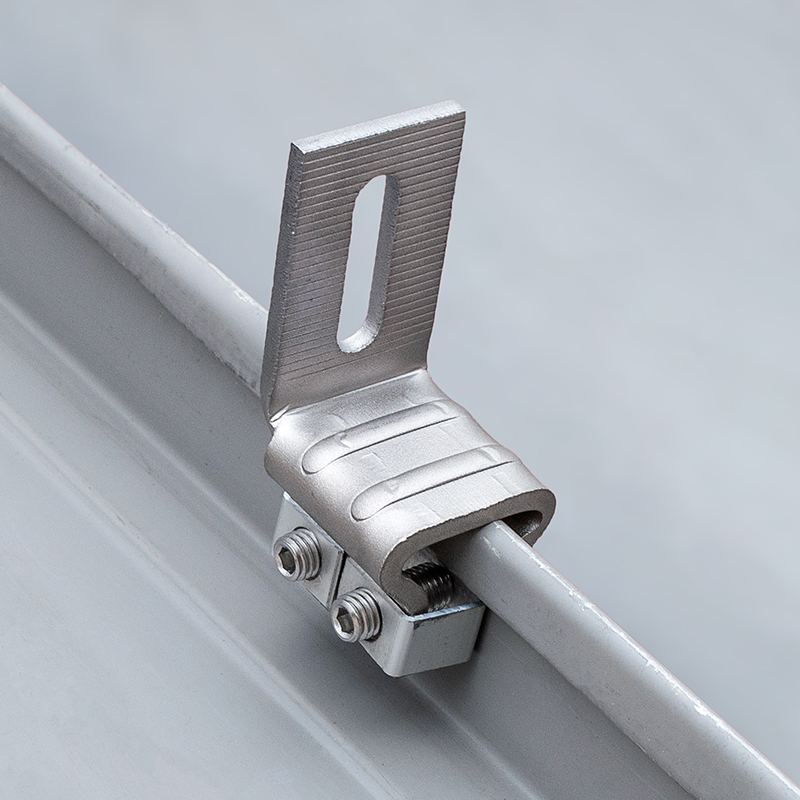

Throne
For 15MM Standing Seam Roofs
The Throne clamps directly to 15mm standing or split seams with no roof penetrations. Pre-assembled with stainless steel set screws, an integrated L-Foot, and a knurled grip plate for maximum hold and fast installs. Tested to 1103 lbs uplift and 790 lbs lateral load. Ships ready to install—no extra parts, no wasted time.
QB2QP
QB2 & QuickPATCH®
QB2 hits rafters right. QuickPATCH® seals holes tight.
Faster installs, fewer parts, fewer holes.
QB2 is the original top mount—Miami-Dade approved, third-party tested, and made of only 3 parts for durable, watertight installs. Missed a rafter? QuickPATCH® increases patching speed and performance while reducing clean up and total hole repair costs with its pre-cut patch with pre-applied butyl sealant. Peel, place, press. No cutting. No mess. No callbacks.
QB2 Features
QB2’s Boltseal® technology physically and visually indicates when a rafter is missed,
so there’s no guessing game.
Boltseal® technology relies on torque-driven compression – if it can’t compress then it won’t seal. To compress the Microflashing® properly and protect the penetration from water intrusion, installers must hit the rafter. When you drive the QB2 (PN 17662) into our L-Foot and Microflashing®, BoltSeal® gets to work: the compression shoulder of the bolt forces the Microflashing® into the penetration, creating a watertight seal that doesn’t require other sealants.
If installers miss the rafter, they will know. It’s that simple. The Microflashing® will not compress, and the L-foot can easily be rotated by your installer. QuickBOLT mounts are the only products on the market that offer this type of error-proof installation technology. Your crews will save your company time and money with this failsafe feedback system. Your team will know they have done the job right the first time, reducing the need to return, and promoting your expert installer reputation.
QB2 Key Features
Top Mount Design: Installs over shingles without lifting or removing them.
BoltSeal® Technology: Provides visual and physical feedback if the rafter is missed—ensuring proper installation.
Microflashing®: Compresses to create a watertight seal without additional sealants.
Fast Installation: Only 3 parts; installs in 15 seconds or less.
Miami-Dade Approved: Certified for high wind zones.
Dual Drive System: Accepts both 1/2" hex and 6mm hex insert bits.
Torque Requirement: Minimum of 150 in-lbs to compress Microflashing® properly.
Rail Slot: 10mm x 46mm, compatible with 5/16" or 3/8" bolts.
System Compatibility: Works with rail and railless systems like Snap N Rack, Unirac, IronRidge, and Eco Fasten
QB2 Variations
17662
Multi Roof Mount - QB2 Kit with 3" Microflashing
and Stainless Steel Low Profile L-Foot.
17862
Multi Roof Mount - QB2 Kit with 3" Microflashing and
Stainless Steel Low Profile Black L-Foot
17962
Multi Roof Mount - QB2 Kit with 3" Microflashing and
Stainless Steel Low Profile Black Split Top L-Foot
QB2 Installation
Installation Process: Drill → Apply Sealant (optional) → Mount
Sealant: Optional due to watertight Microflashing® Miami-Dade approved, without sealant
Testing: Passed ASTM E331, E2140 standards with no leakage
QB2 with Dual Flashing
For Shingle Seams and Butt Joints.
The QB2 offers a simple way to keep mounts leak-free. For extra tricky spots like shingle seams and butt joints, try QB2 with Miniflashing®. Or add a box of Miniflashing® to your order.
Customers often pair QuickPATCH® with the QB2
because sometimes, the rafter isn't where it's supposed to be
Holes in roofs are an unavoidable reality in the solar and construction industries—caused by solar installations, plywood knots, safety anchor mounts, weather damage, or simply roof aging. Until now, patching these holes meant relying on messy DIY fixes that end up costing more in time, money, and rework due to unknown expenses, callbacks, and the inability to track usage or application. QuickPATCH® changes all that. Designed with pre-applied sealant, it’s the only all-in-one, standardized solution that’s quick, consistent, and permanent. Protect your customers from leaks and protect your bottom line—choose QuickPATCH® for confidence in every install.
QuickPATCH® Videos
QuickPATCH
Delivering fast, professional-grade leak prevention and repair—perfect for homeowners, roofers, and solar installers needing a quick and leak-proof way to seal holes and leaks
Roof Holes Happen
Holes in roofs are an unavoidable reality—caused by solar installations, plywood knots, safety anchor mounts, weather damage, or roof aging—but messy DIY fixes often cost more in time, money, and callbacks. That’s why we developed QuickPATCH®, the only all-in-one, standardized solution with pre-applied sealant for quick, consistent, and permanent repairs.
Video of QuickPATCH Installation
Order the QuickPATCH® today

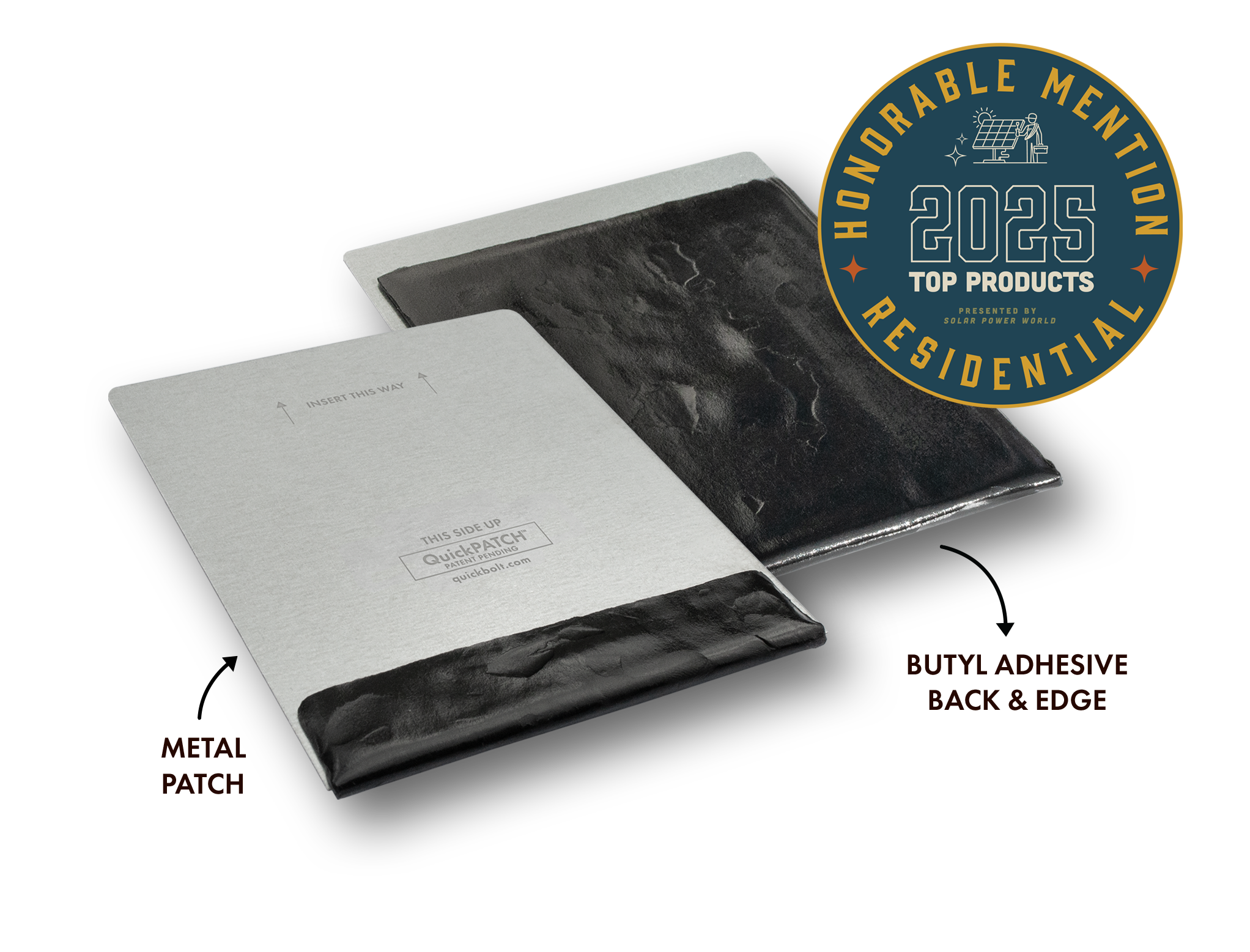

The QuickPATCH® is a patent pending roof patch designed to patch roof holes and leaks. The product uses butyl on the bottom to seal the hole or leak. The flashing adds rigidity and the butyl on the top holds the shingle in place. Each QuickPATCH® is individually shrink-wrapped for protection.
BUTYL FACTS
The QuickPATCH® features pre-applied butyl, a trusted adhesive sealant used in roofing and construction for decades. Butyl maintains its strength even after 35 years of exposure, especially in metal roofing applications, ensuring the QuickPATCH® delivers reliable, long-term durability.
Dims: 4"x5" Galvanized Steel with 0.5mm Butyl Seal
"I've never been so excited.
I've been asking people to make
this product for me for years. I'm all in!"
– Brandan Sirrine, Solar Goat

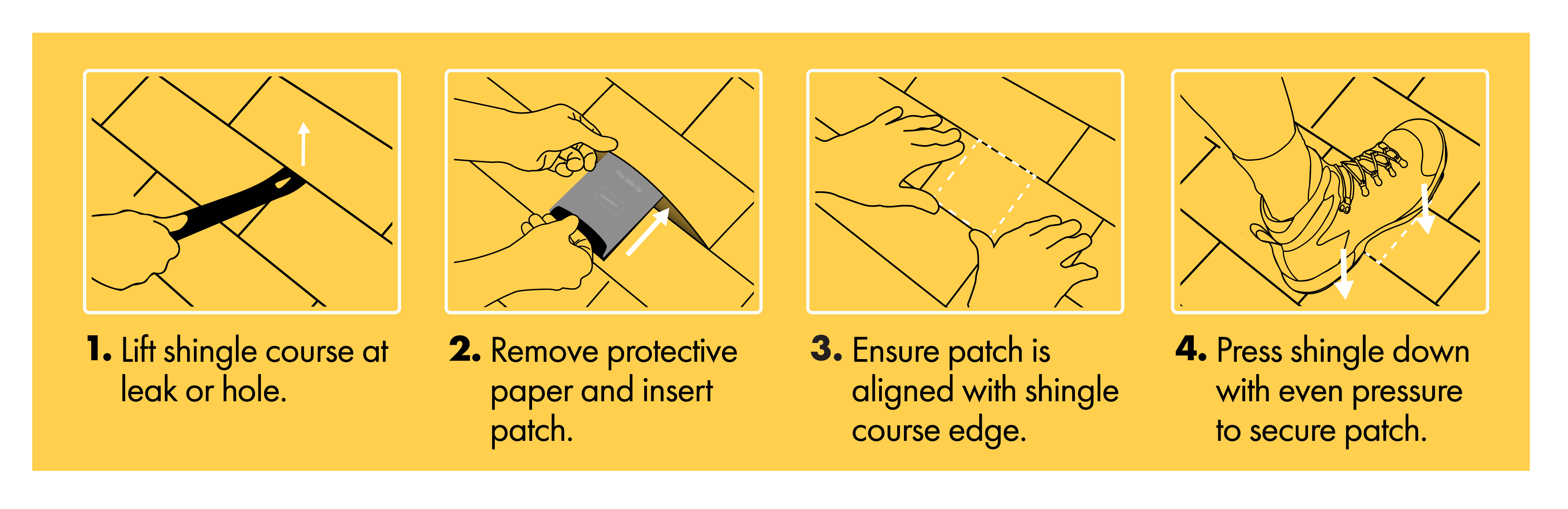

Quick and Simple Application
Peel. Place. Press.
Seals Holes & Prevents Leaks From
A roof hole can lead to leaks at the worst times—during storms or while waiting for a roofer. QuickPATCH® seals holes fast,
stopping leaks caused by missed rafters, removed satellites, or general damage, keeping your roof protected.
