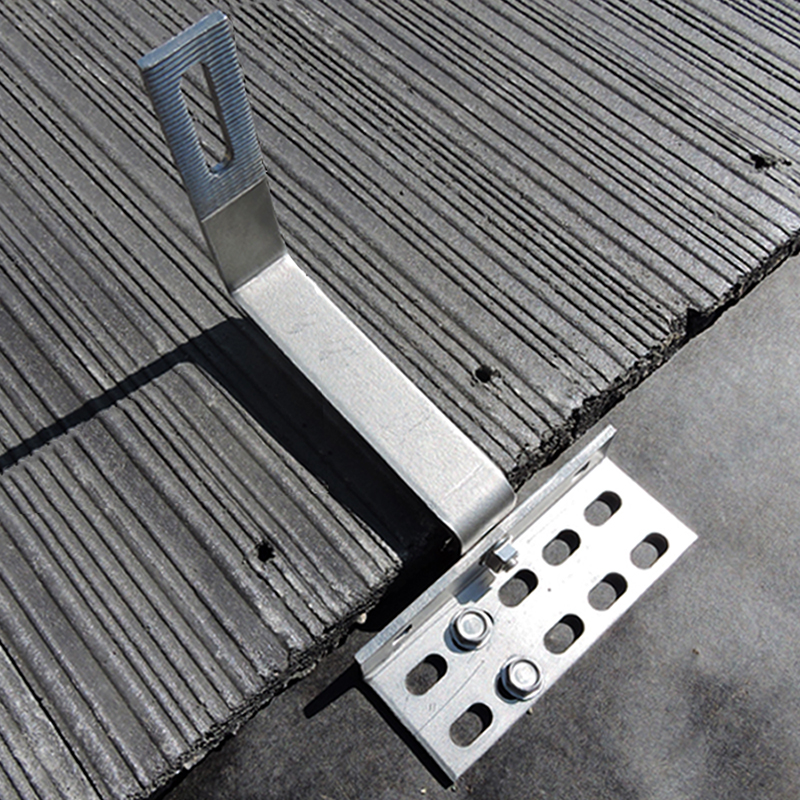

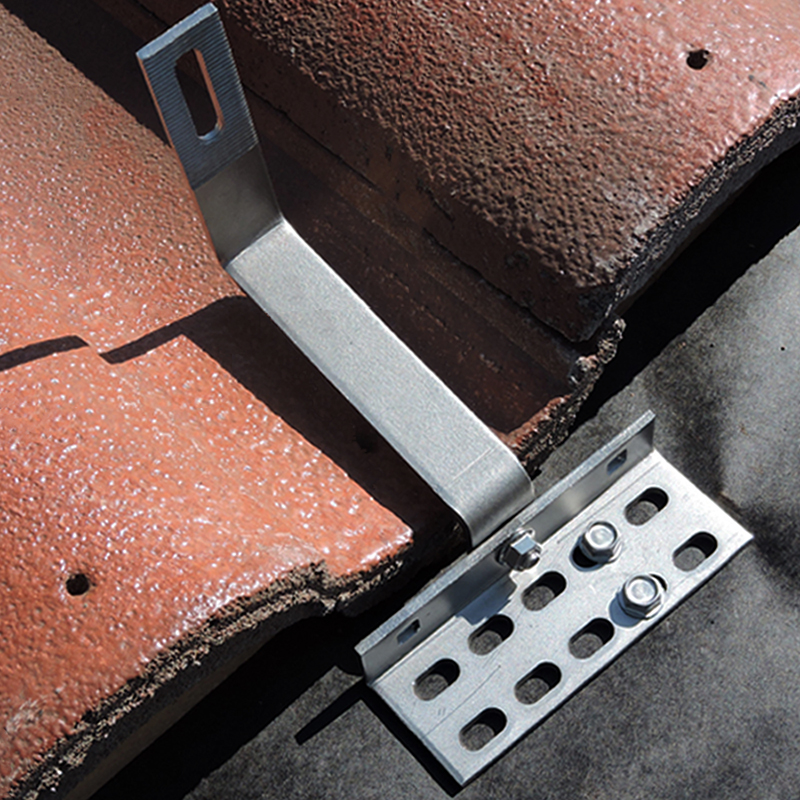

The longer arm fits a wider variety of tile styles. The base has three leverage points of adjustment, thus flexibility for the installer when mounting to the roof. The 10mm x 46mm rail slot accepts 5/16" or 3/8" bolts. Use our 1/4" or 5/16" Screws in the 9mm x 18mm slots.
Height Adjustable All Tile Roof Hook for Side Mount Rails
17705
$17.95 / KTP
Height Adjustable All Tile Roof Hook for Side Mount Rails
17705
Detail

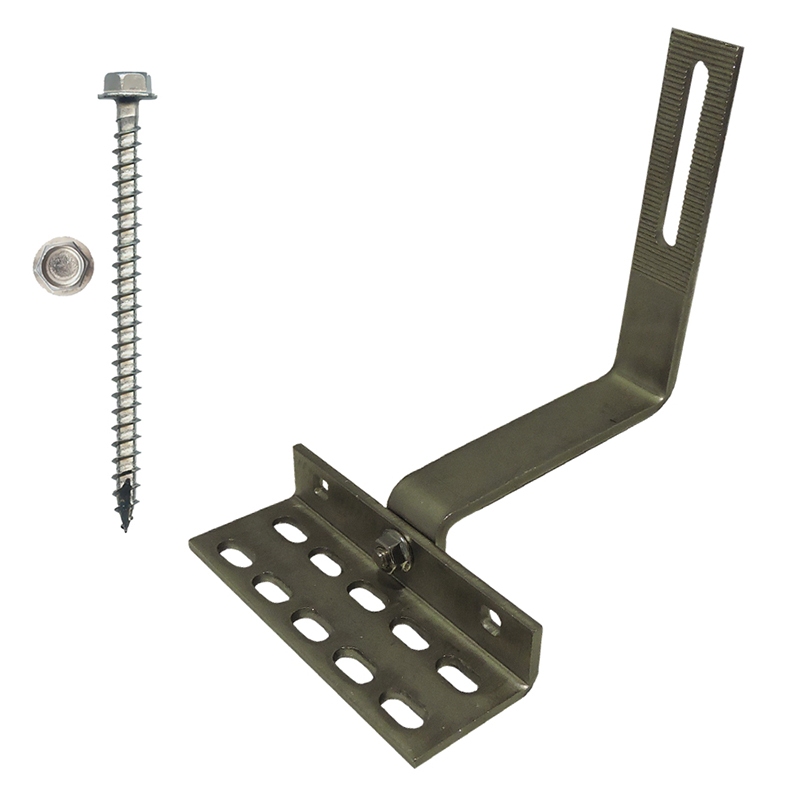

90° All Tile Roof Hook 5-3/4" Arm, 8mm Height Adjust Range Kit with 5/16" X 3" Screws - for Curved & Flat Tile Roofs - works with or without battens. Type 304 Stainless Steel
Recommended Products
NEW
15437
3/8" X 1-3/4" Roof Screw Driver, Fits 1/4" Solar Mounting Screw = 1/4" Screw
1.00 / PK
$3.09
NEW
17509

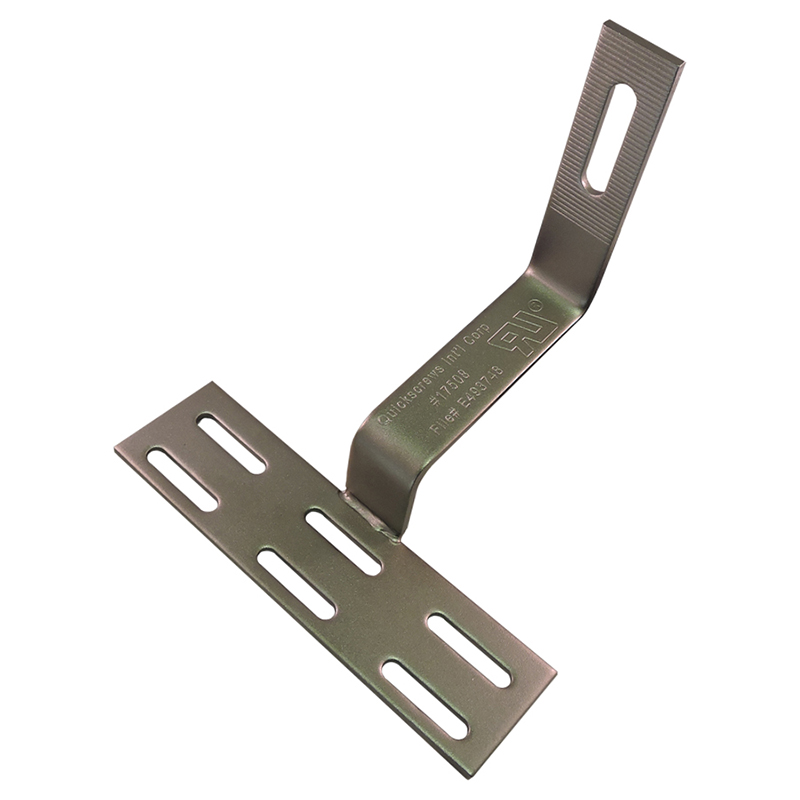

90° Non-Adjustable Curved Tile Roof Hook . Type 304 Stainless Steel
1.00 / PK
$10.92
NEW
17734
Conduit Bracket for Tile
60.00 / CS
$293.90
NEW
16062
3/8-16 X 1" IR T-Bolt W/Loktite, Assembled with Nut SS 100/PK.
100.00 / PK
$140.00
The longer arm fits a wider variety of tile styles. The base has three leverage points of adjustment, thus flexibility for the installer when mounting to the roof. The 10mm x 46mm rail slot accepts 5/16" or 3/8" bolts. Use our 1/4" or 5/16" Screws in the 9mm x 18mm slots.
17705 AHJ Permit Packet
