QB2 with Microflashing

17662

$208.00 / KTP
NEW BEST SELLER

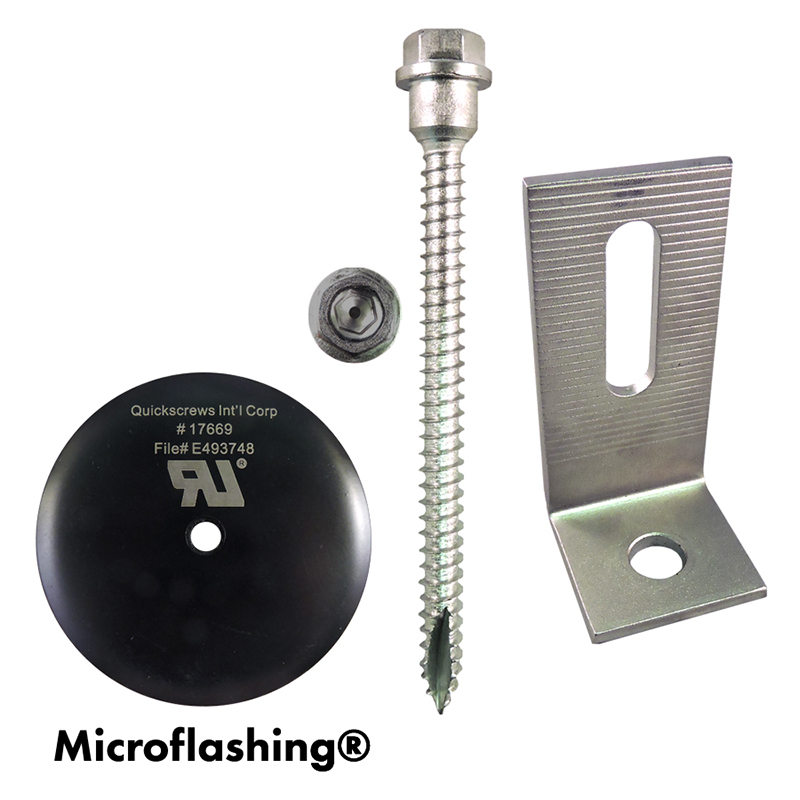

Part Number 17662 Multi Roof Mount - 5/16 X 4" QuickBOLT2 Kit with 3" Microflashing and SS Low Profile L-Foot 25/Kit - Weight/Kit = 11.00 Lbs
3d animation qb2 install

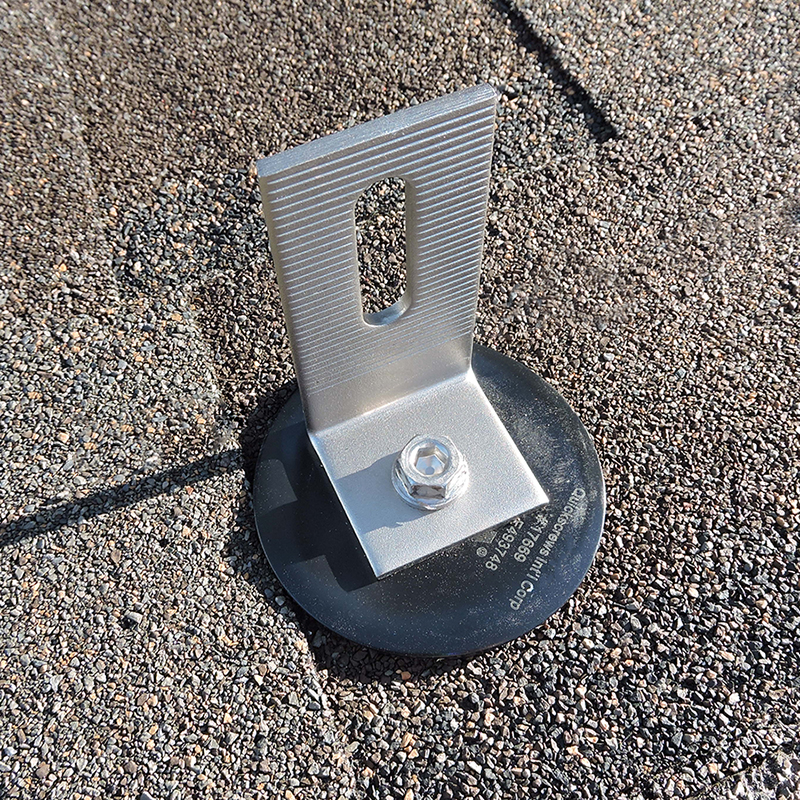

Mount Installed on Roof
Mount Installed on Roof

QB2 with Microflashing

17662

Detail

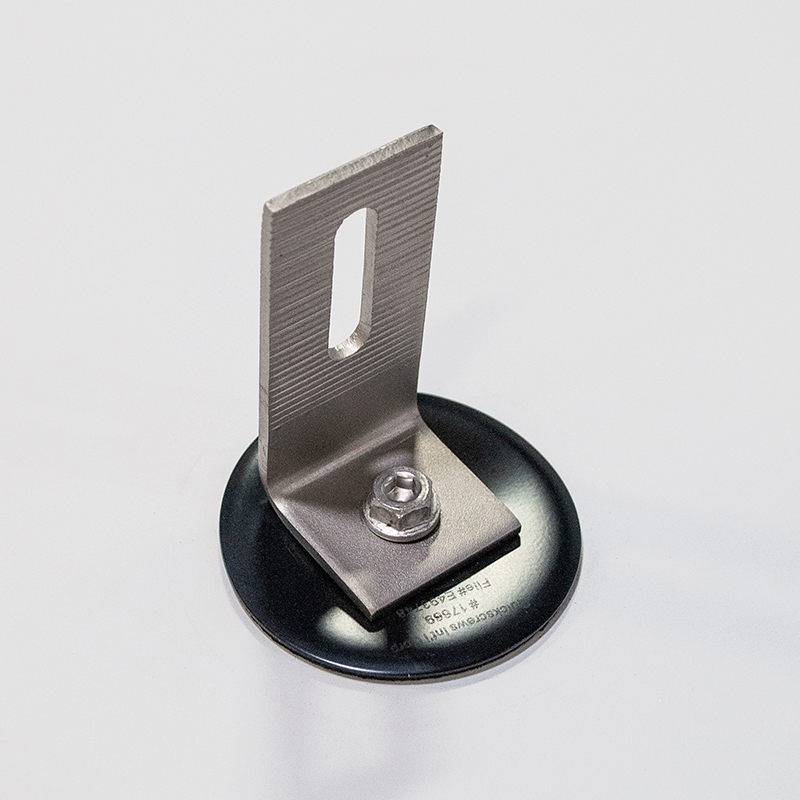

Multi Roof Mount - QB2 Kit with 3" Microflashing and Stainless Steel L-Foot. miami-dade county noa

Quantity per KTP

KTP Weight
11 lb

QuickBOLT Length

Microflashing®

Stainless Steel L-Foot

Serrated Flange Nuts

No Nuts

T-Bolt Size

No T-Bolts
NEW BEST SELLER
$208.00 / KTP

Recommended Products

  • The QB2 Kit is the Fastest and Easiest way to mount Solar to a variety roofs Sealant is Optional.
  • Leak-Proof Water Test Results - Sealant is Optional
    • ASTM E331 @ 15.00psf No Leakage. ASTM E331 (modified), 120 min @ 30.00 PSF No Leakage.
    • ASTM E2124 (modified), 6" water column for 7 days No Leakage.
  • Dual Drive System use either Standard 1/2" Hex or 6MM Hex Insert Bit.
  • To compress MicroFlashing® properly with QB2 requires 150 Minimum Torque Lbs/Inch.
  • The 10MM x 46MM rail slot accepts 5/16" or 3/8" bolts.
  • Compatible with Rail and Most Railless Systems Including Snap N Rack, Unirac, IronRidge and Eco Fasten.
  • Simply Drill, seal, and mount!
  • Patent #8448407
  • Customers of the QB2 say: "What stuck out about the QB2 is the ease of the microflashing, there's no extra steps to it. You drive the bolt in, the microflashing compresses, and you don't even need to use sealant" -Salt Energy "I love the QuickBolt MicroFlashing!" -GTRE

17662 AHJ Permit Packet

Miami-Dade County NOA

BoltSeal® Poster
