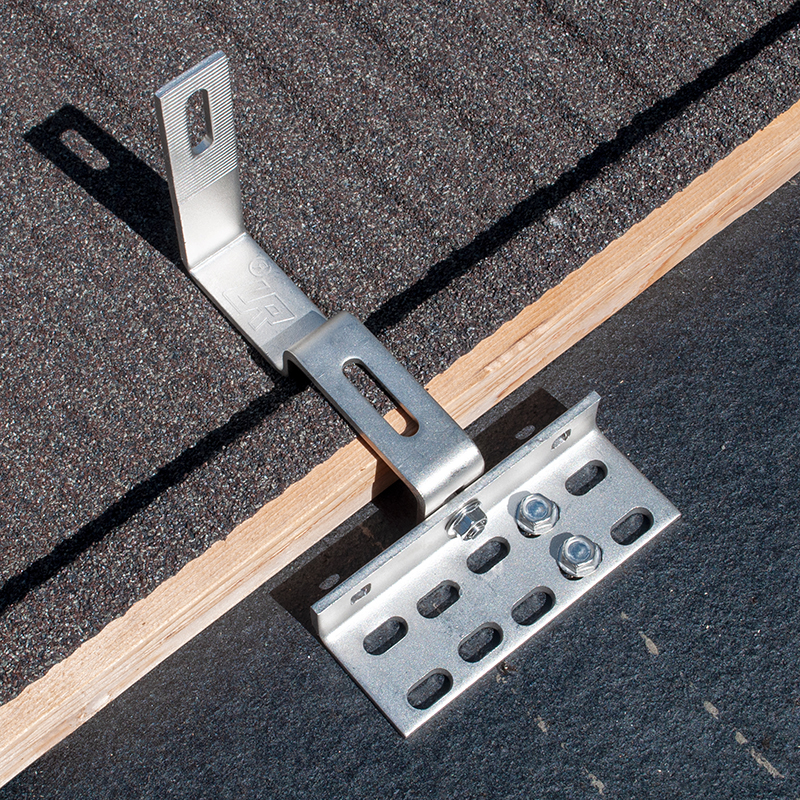

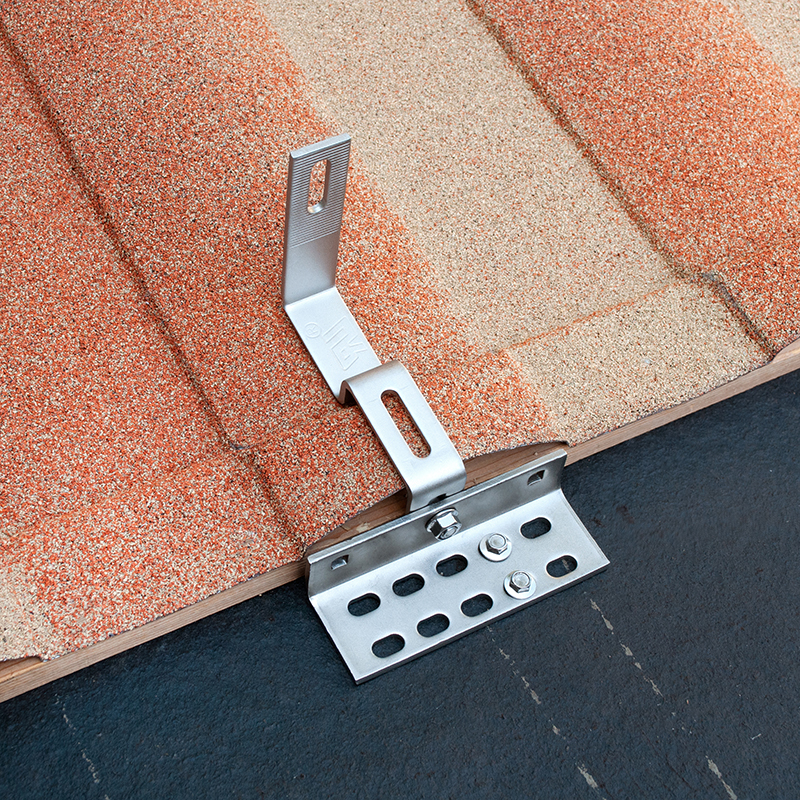

The wide base allows for more range when bolting to the roof rafter and the 3 points of attachment for the arm allows you to move the arm according to the location of the barrel on curved profile models. Batten bridge has a 9mm x 40mm slot and is 86.2mm wide. 10mm x 38mm rail slot accepts 5/16" or 3/8" bolts. Use our 5/16" Solar Screws in the 9mm slots.
All Stone Coated Steel Hook with Wide Base, 12.5mm Height Adjust
17641
$18.20 / KTP
All Stone Coated Steel Hook with Wide Base, 12.5mm Height Adjust
17641
Detail

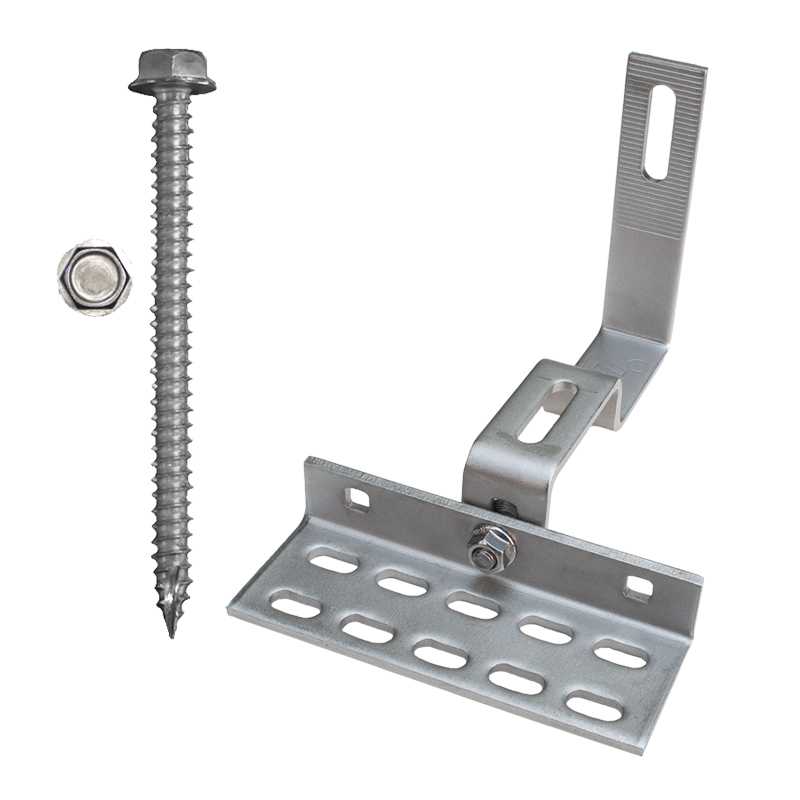

90° All SC-Steel Hooks, 12.5mm Height Adjust Range, Wide Base Kit with 5/16" X 3" Solar Screws
