QB1 Low Profile with Microflashing

17667ss

$195.77 / KTP
BEST SELLER

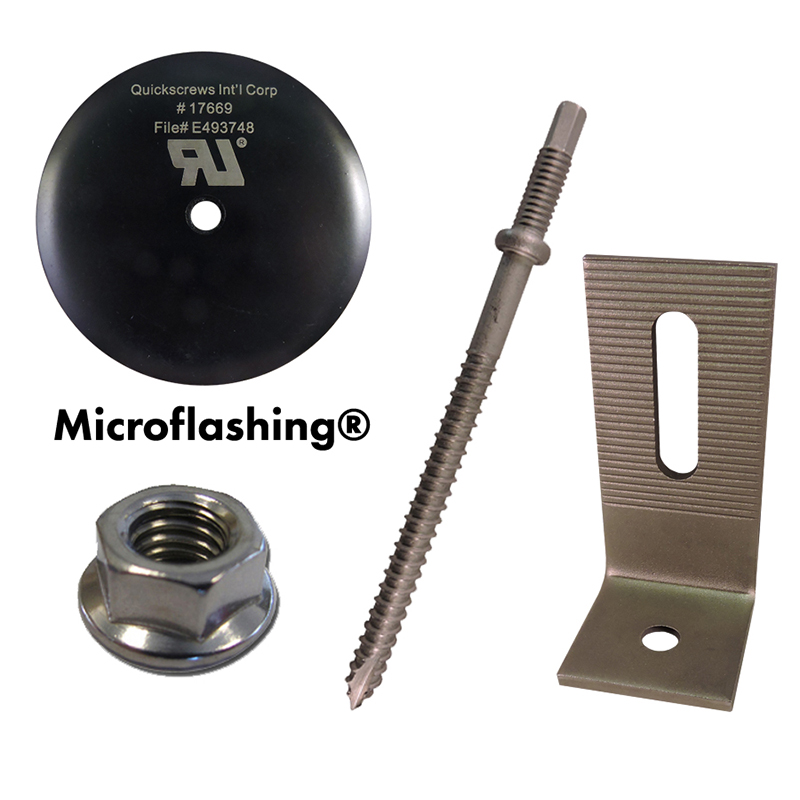

Part Number 17667SS Multi Roof Mount Kit - 5/16 X 5 1/4" QB1 Low Profile Kit SS + 3" Micro + L-Foot & Nuts 25/Kit - 3 Kits/Case Weight/Case: 37.00 Lbs

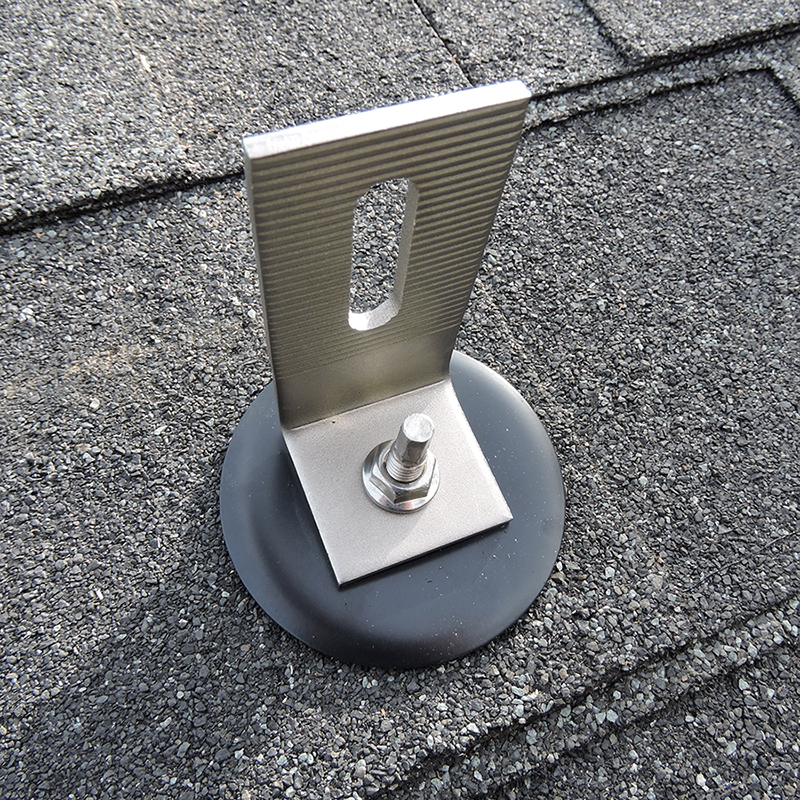

Mount Installed on Roof

QB1 Low Profile with Microflashing

17667ss

Detail

Multi Roof Mount Kit - QB1 Low Profile Kit Stainless Steel & 3" Micro & L-Foot & Nuts

Quantity per KTP

KTP Weight
12.25 lb

QuickBOLT Length

5-1/4"

Microflashing®

Stainless Steel L-Foot

Serrated Flange Nuts

BEST SELLER
$195.77 / KTP

Recommended Products

The Low Profile QuickBOLT Kit offers installers an efficient way to mount panels to composite roofs without compromising water resistance.

  • The 10mm x 46mm rail slot accepts 5/16 or 3/8" bolts.
  • To compress MicroFlashing® properly with QB1 125 Minimum Torque Lbs/Inch is required (For QB Lengths 5-1/4”, 7”, 8” 9”).
  • Drill, seal, and mount. It's that easy!
  • Patent #8448407

17667SS AHJ Permit Packet

Product Details

The Low Profile QuickBOLT Kit offers installers an efficient way to mount panels to composite roofs without compromising water resistance.

  • The 10mm x 46mm rail slot accepts 5/16 or 3/8" bolts.
  • To compress MicroFlashing® properly with QB1 125 Minimum Torque Lbs/Inch is required (For QB Lengths 5-1/4”, 7”, 8” 9”).
  • Drill, seal, and mount. It's that easy!
  • Patent #8448407

17667SS AHJ Permit Packet
