Adjustability allows the installer to mount the hook over remnants of the old roof. Batten bridge has a 9mm x 40mm slot and is 63.5mm wide. 10mm x 38mm rail slot accepts 5/16" or 3/8" bolts. Use our 1/4" or 5/16" Solar Screws in the 9mm slots.
Height Adjustable 18mm for Bottom Mount Rails - Short
17552
$248.77 / CS
Height Adjustable 18mm for Bottom Mount Rails - Short
17552
Detail

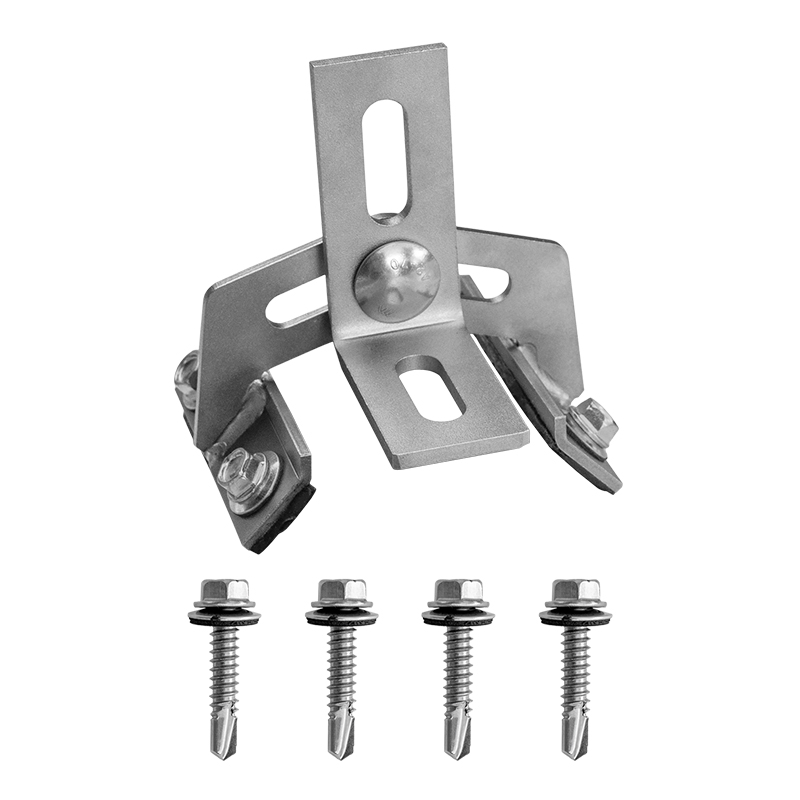

180° Stone Coated Steel Roof Hook, 18mm Height Adjust Range
Quantity per CS
20
CS Weight
21.71 lb
Screw Size
