QuickBOLT2 with Microflashing
PN: 17962

Livermore, CA Prox Due DateDetail pending
Qty Due Livermore, CaDetail pending
Rock Hill, SC Prox Due DateDetail pending
Qty Due Rock Hill, SCDetail pending
Click to Choose Options

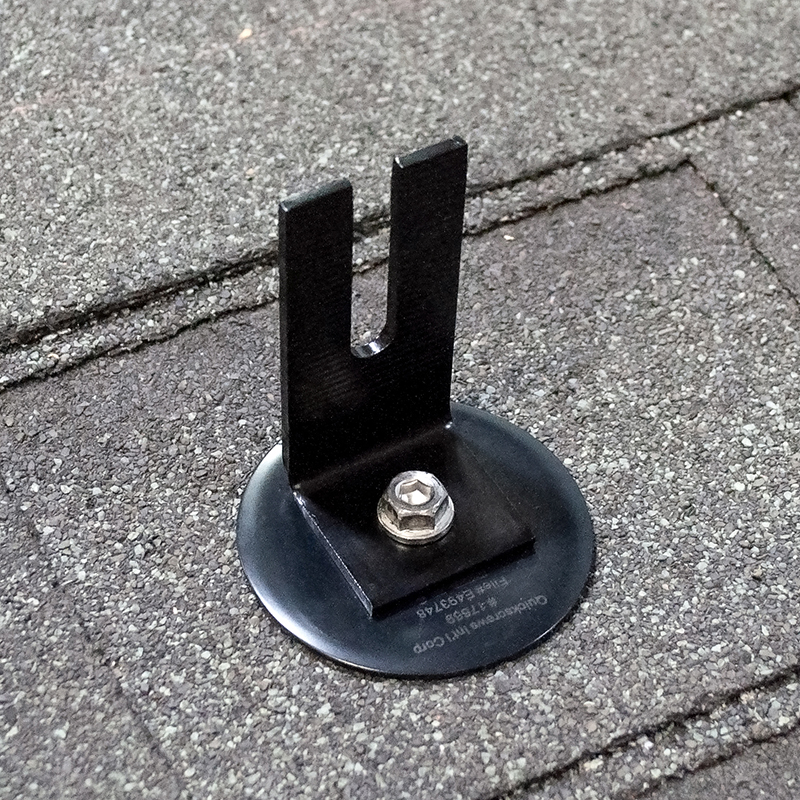

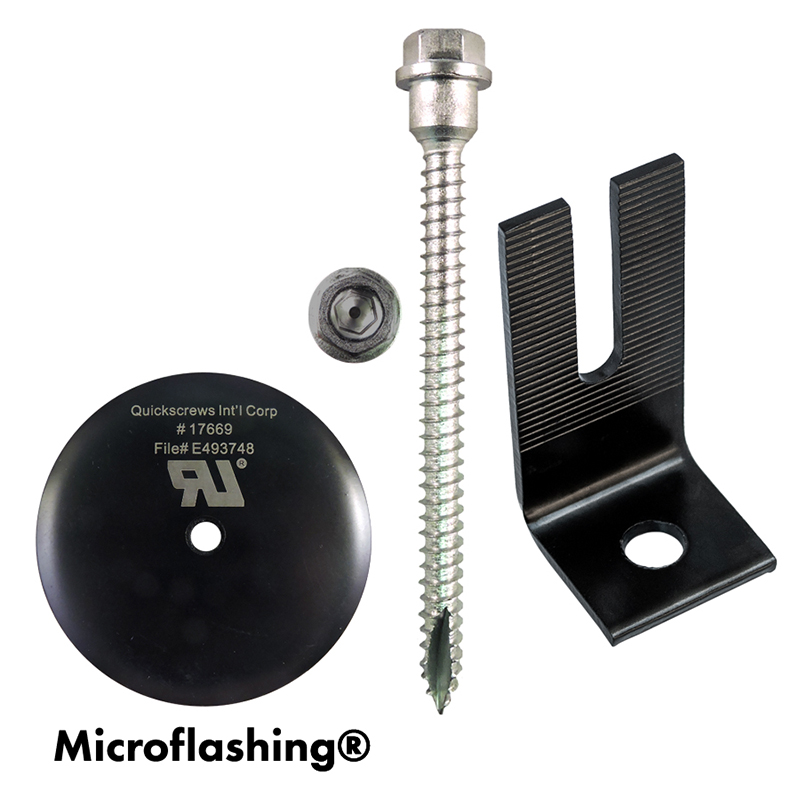

Multi Roof Mount - 5/16 X 4" QuickBOLT2 Kit with 3" Microflashing and SS Low Profile Blk Split Top L-Foot 25/Kit - Weight/Kit = 11.00 Lbs
Product Comments:
The QB2 Kit is the Fastest and easiest way to mount Solar to a variety roofs Sealant is Optional. Leak Proof-Water Test Results - Sealant is Optional. ASTM E331 @ 15.00psf No Leakage. ASTM E331 (modified), 120 min @ 30.00 PSF No Leakage. ASTM E2140 (modified), 6" water column for 7 days No Leakage. Dual Drive System use either Standard 1/2" Hex or 6MM Hex Insert Bit. To compress MicroFlashing® properly with QB2 requires 150 Minimum Torque Lbs/Inch. The 10MM x 46MM rail slot accepts 5/16" or 3/8" bolts. Compatible with Rail and Most Railless Systems Including Snap N Rack, Unirac, IronRidge and Eco Fasten. Simply Drill, seal, and mount! Patent #8448407
