The QB2 Kit is the Fastest and easiest way to mount Solar to a variety roofs Sealant is Optional. Leak Proof-Water Test Results - Sealant is Optional. ASTM E331 @ 15.00psf No Leakage. ASTM E331 (modified), 120 min @ 30.00 PSF No Leakage. ASTM E2124 (modified), 6" water column for 7 days No Leakage. Dual Drive System use either Standard 1/2" Hex or 6MM Hex Insert Bit. To compress MicroFlashing® properly with QB2 requires 150 Minimum Torque Lbs/Inch. The 10MM x 46MM rail slot accepts 5/16" or 3/8" bolts. Compatible with Rail and Most Railless Systems Including Snap N Rack, Unirac, IronRidge and Eco Fasten. Simply Drill, seal, and mount! Patent #8448407
QB2 with Microflashing
17663
$214.16 / KTP

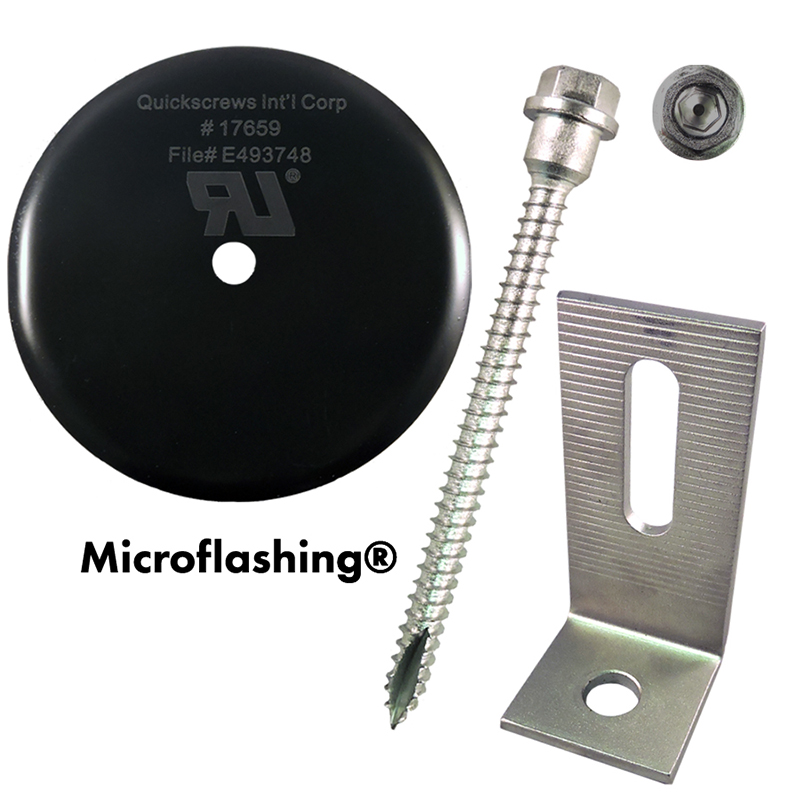

![Part Number 17663 Multi Roof Mount - 5/16 X 4" QuickBOLT2 Kit with 4" Microflashing and SS Low Profile L-Foot 20/Kit - Weight/Kit = 13.00 Lbs](/sites/default/files/products/images/17663-1.jpg)

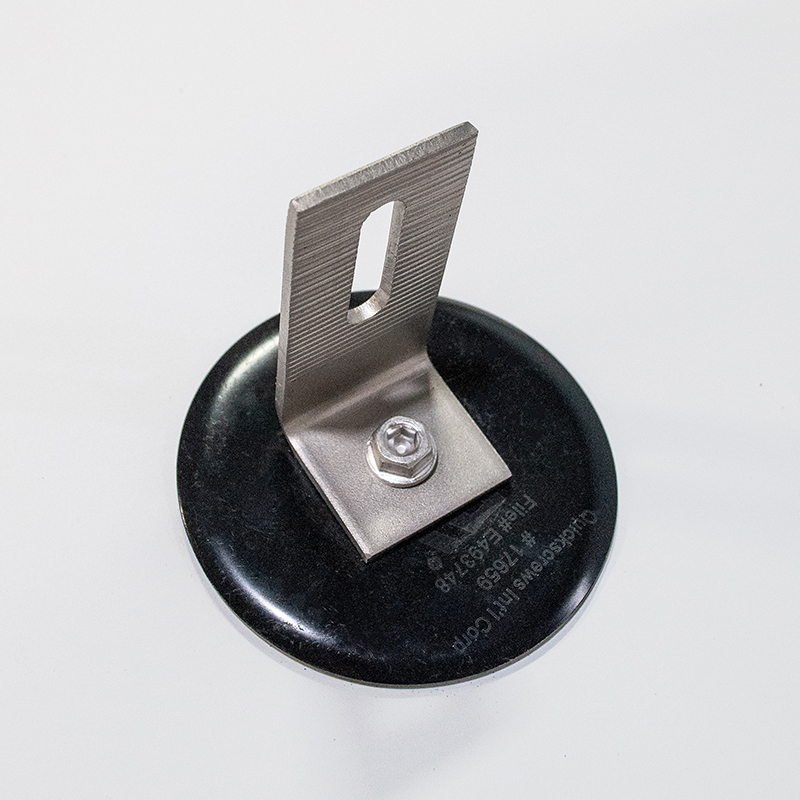

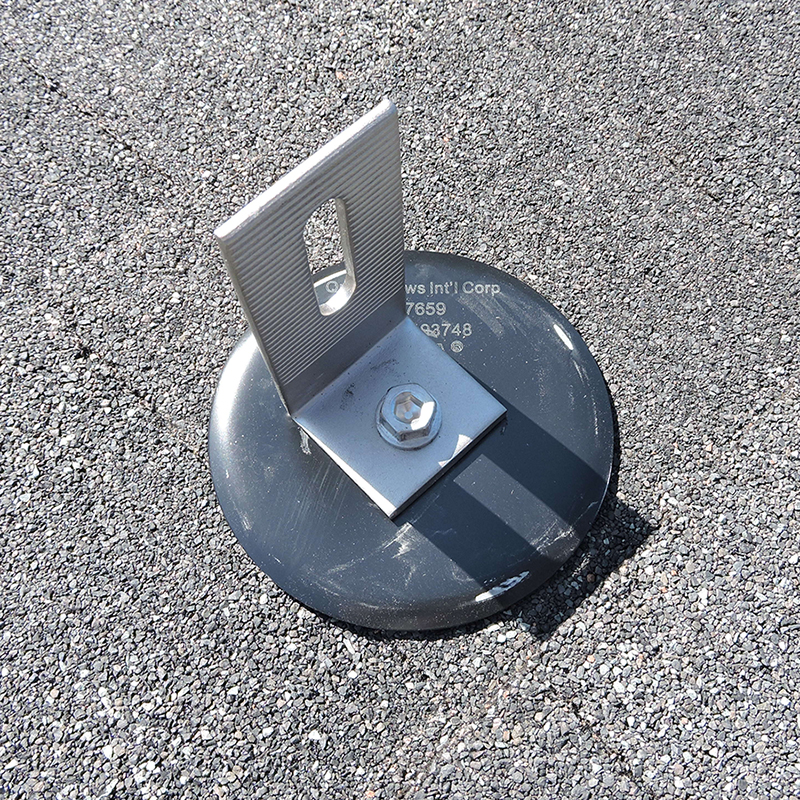

![Mount Installed on Roof](/sites/default/files/products/images/17663-2.jpg)
![Mount Installed on Roof](/sites/default/files/products/images/17663-3.jpg)
QB2 with Microflashing
17663
Detail
Multi Roof Mount - QB2 Kit with 4" Microflashing and Stainless Steel L-Foot
Recommended Products
The QB2 Kit is the Fastest and easiest way to mount Solar to a variety roofs Sealant is Optional. Leak Proof-Water Test Results - Sealant is Optional. ASTM E331 @ 15.00psf No Leakage. ASTM E331 (modified), 120 min @ 30.00 PSF No Leakage. ASTM E2124 (modified), 6" water column for 7 days No Leakage. Dual Drive System use either Standard 1/2" Hex or 6MM Hex Insert Bit. To compress MicroFlashing® properly with QB2 requires 150 Minimum Torque Lbs/Inch. The 10MM x 46MM rail slot accepts 5/16" or 3/8" bolts. Compatible with Rail and Most Railless Systems Including Snap N Rack, Unirac, IronRidge and Eco Fasten. Simply Drill, seal, and mount! Patent #8448407
