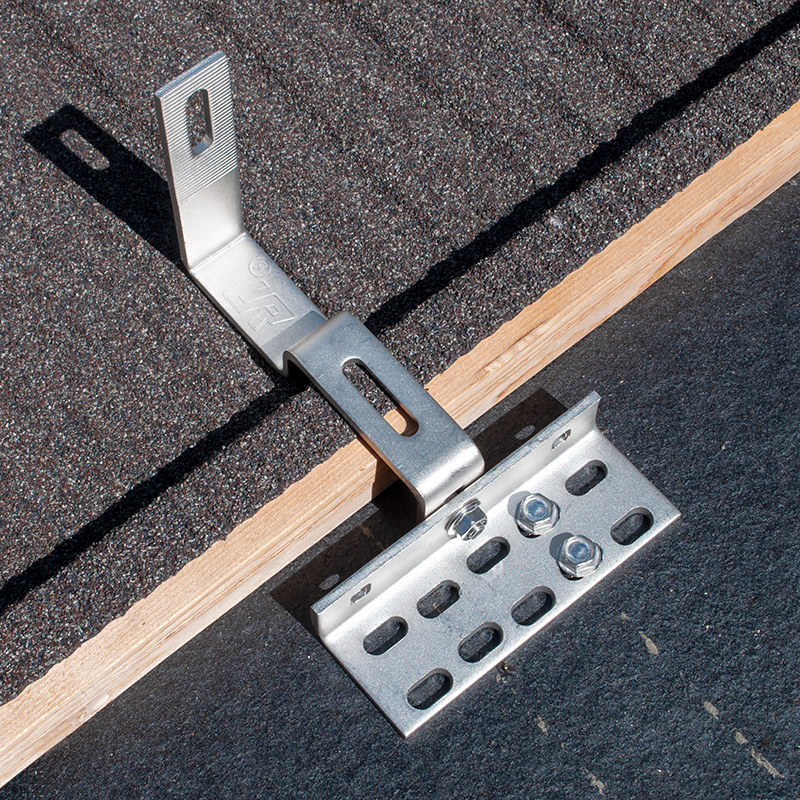

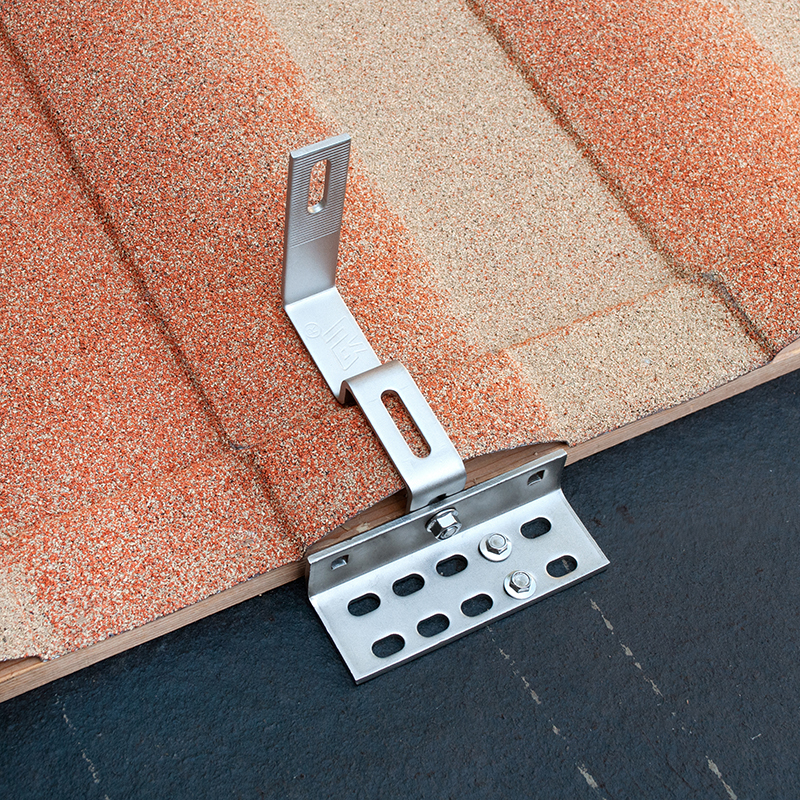

The wide base allows for more range when bolting to the roof rafter and the 3 points of attachment for the arm allows you to move the arm according to the location of the barrel on curved profile models. Batten bridge has a 9mm x 40mm slot and is 86.2mm wide. 10mm x 38mm rail slot accepts 5/16" or 3/8" bolts. Use our 5/16" Solar Screws in the 9mm slots.
Height Adjustable All Stone Coated Steel Hook
17566
$148.72 / CS

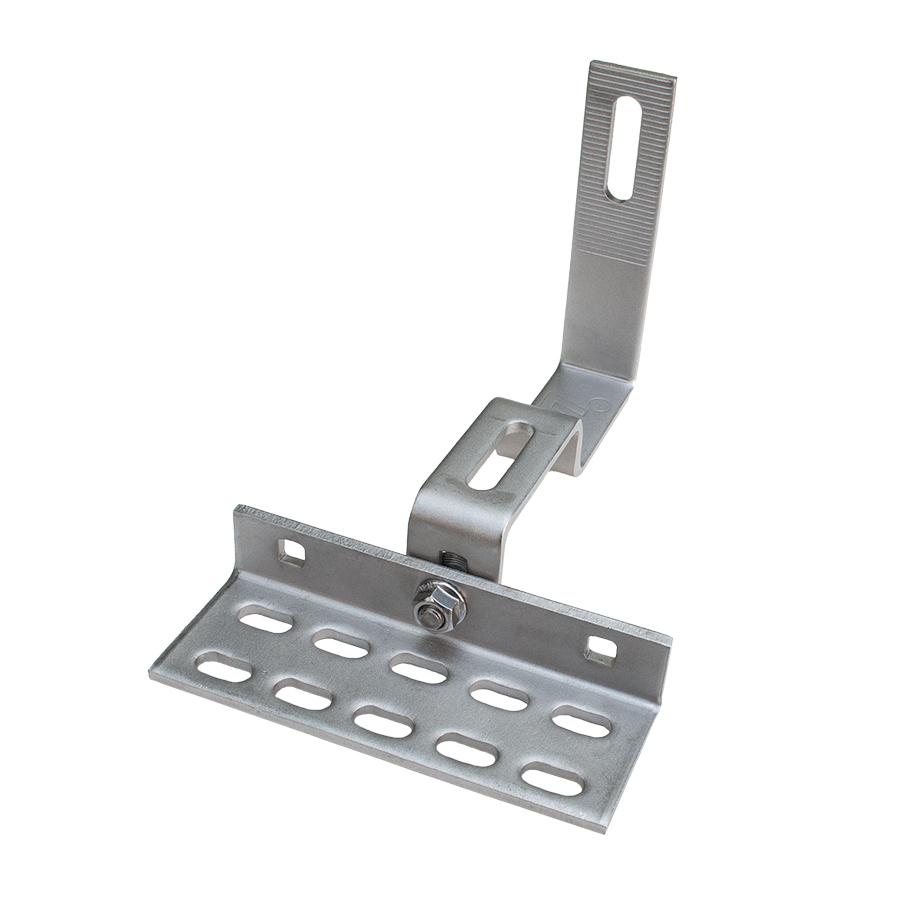

Height Adjustable All Stone Coated Steel Hook
17566
Detail
90° All SC-Steel Hooks, 12.5mm Height Adjust Range, Wide Base
Quantity per CS
10
CS Weight
19 lb
Screw Size
None
Recommended Products
NEW
15437
3/8" X 1-3/4" Roof Screw Driver, Fits 1/4" Solar Mounting Screw = 1/4" Screw
1.00 / PK
$3.09
NEW
BEST SELLER
17585

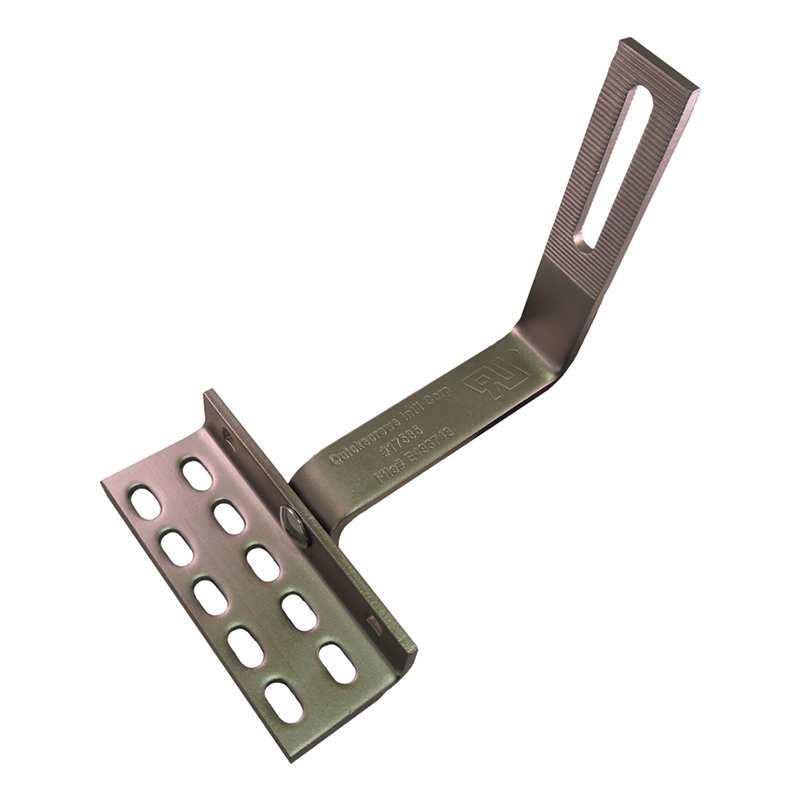

90° All Tile Roof Hook, 8mm Height Adjust Range, for Curved & Flat Tile Roofs - works with or without battens. Type 304 Stainless Steel
10.00 / CS
$143.85
NEW
17700

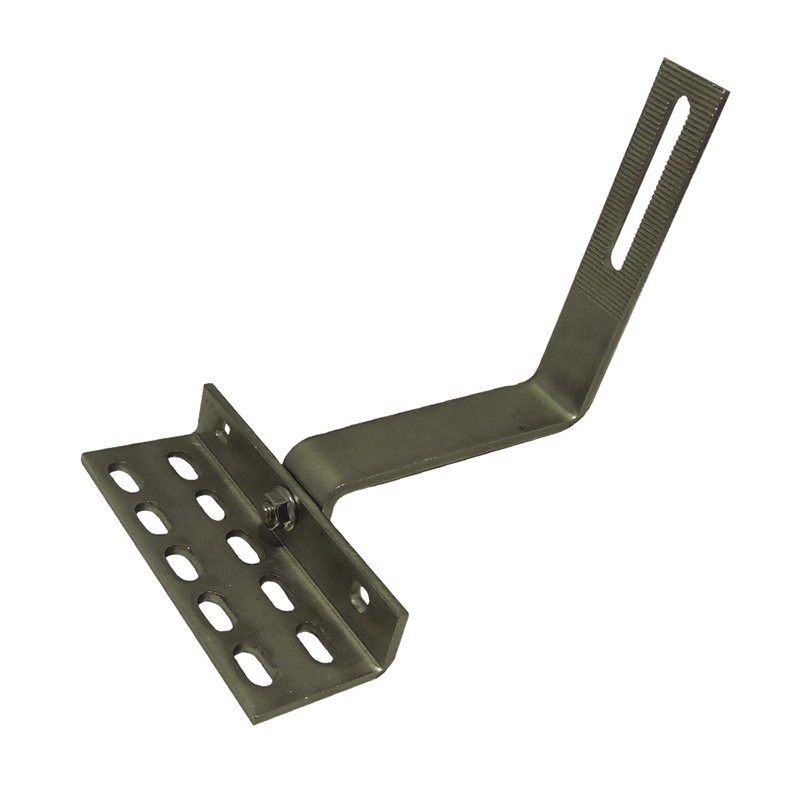

90° All Tile Roof Hook 5-3/4" Arm, 8mm Height Adjust Range - for Curved & Flat Tile Roofs - works with or without battens.
10.00 / CS
$163.97
NEW
17734
Conduit Bracket for Tile
60.00 / CS
$293.90
NEW
16062
3/8-16 X 1" IR T-Bolt W/Loktite, Assembled with Nut SS 100/PK.
100.00 / PK
$140.00
The wide base allows for more range when bolting to the roof rafter and the 3 points of attachment for the arm allows you to move the arm according to the location of the barrel on curved profile models. Batten bridge has a 9mm x 40mm slot and is 86.2mm wide. 10mm x 38mm rail slot accepts 5/16" or 3/8" bolts. Use our 5/16" Solar Screws in the 9mm slots.
17566 AHJ Permit Packet

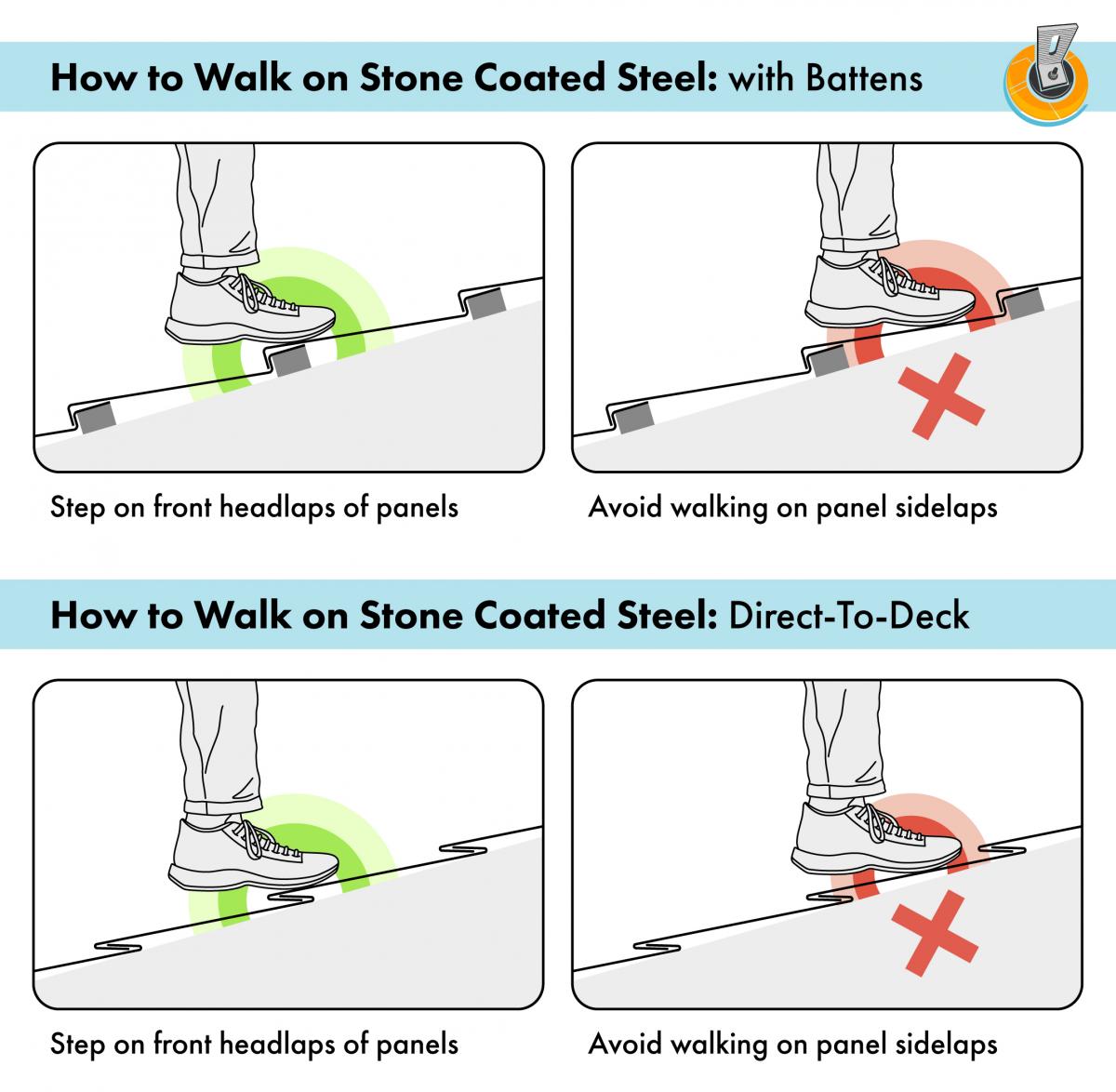

How to Walk on Stone Coated Steel Roofs
